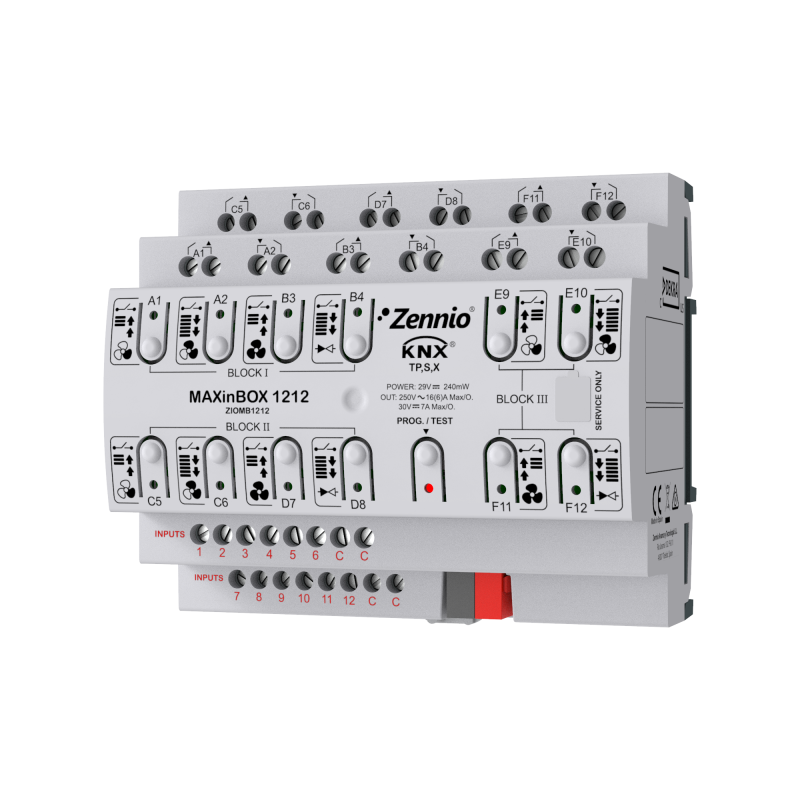

MAXinBOX 1212

Multifunction sensor-actuator for DIN-rail (6 units) with 12 outputs (16 A C-load) which offer multiple configurations as shutter channels, up to 12 independent outputs of 16 A (capacitive loads supported) and up to 3 blocks of 2-pipes fan coil controller. It allows manual control of its outputs through the push buttons on the cover. It includes 10 independent logical functions. In addition, it incorporates 12 analog/digital inputs that may be configured as binary inputs for sensors and potential free push buttons, as temperature probe inputs (up to 8) or as motion sensor inputs (up to 8). Four room thermostats to control heating/cooling systems are included. It is compatible with KNX Secure.

Accessories: temperature probe and motion sensor.
